THOMAS DUDLEY Illusion 'A' WC Support Adjustable Frame, Dual Flush Cistern Excluding Button/push Plate, 325686 (Q-25499)
Brand: THOMAS DUDLEY by:- TYDE
Product Code: 325686
Availability: In Stock
Estimated Delivery: 2-5 Working Days
Product Code: 325686
Availability: In Stock
Estimated Delivery: 2-5 Working Days
Price:
£436.30
£193.99
(£161.66 ex Vat)
THOMAS DUDLEY Illusion 'A' WC Support Adjustable Frame, Dual Flush Cistern Excluding Button/push Plate, 325686 (Q-25499)
Uses

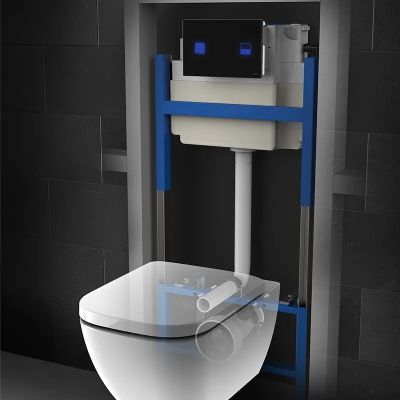

- Wall-hung WC pan support frame designed for use against flat walls and in corners.
- Ideal for most domestic and commercial applications.
Features

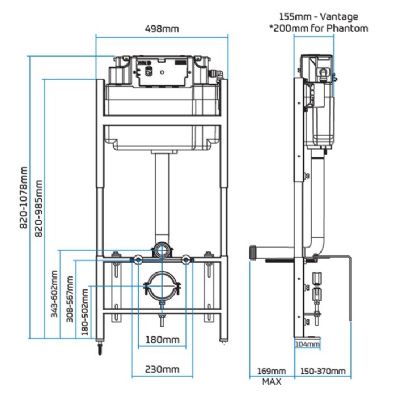

- Unique design enables frame height to be set between 820mm and 1078mm for unrivalled installation flexibility
- Depth adjustment 150-370mm.
- Legs adjust to offer WC pan height fixing flexibility

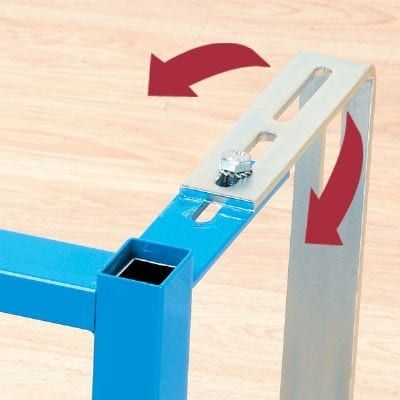

- Wall and floor fixing brackets can be fixed through 180° and 360° respectively to provide further flexibility
- Strong steel square hollow construction
- Blue powder coated finish and zinc plated wall and floor brackets
- Flushbend and WC pan connector clamps
- Integral factory fitted Dudley Vantage cistern
- 5L & 4L mono flush is achievable
Water-saving
Vantage cistern:
- Provides 6/4 litre dualflush and quickly and easily converts before or after installation to 5/3 or 4/2.6 litre dualflush
- Delay fill Hydroflo inlet valve only allows cistern to start refilling once flushing is complete, saving up to 0.5L of drinking water per flush
- European Water Label Scheme registered
- Supports BREEAM.
Options
- Polystyrene cistern insulation jacket.
- Odour-extracting Panfan.
- Push Button.
N.B. On rare occasions, some of the cistern parts can get dislodged during transit. The parts should easily fit back into place.
